New engine features

WEDB improvments

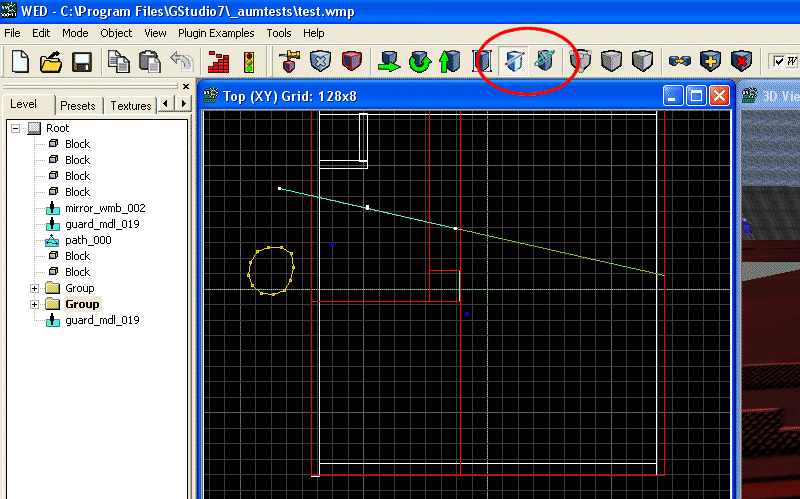

WEDB has got two tools for slicing and cutting blocks. "Slice (line)" cuts the selected block or group, while "Slice (plane)" cuts the whole group along a plane.

ent_status(entity, mode)

Returns lots of information about the entity.

var vertices;

var total_vertices;

var squares_x;

var squares_y;

var triangles_main;

var triangles_lod1;

var triangles_lod2;

var triangles_lod3;

var num_skins;

var mesh_subsets;

var skins_per_subset;

var anim_frames;

var num_bones;

var tchunks_mblocks;

var lod_meshes;

BMAP* pointer_tga = "pointer.tga";

function mouse_startup()

{

       mouse_mode = 2;

       mouse_map = pointer_tga;

       while (1)

       {

               vec_set(mouse_pos, mouse_cursor);

               wait(1);

       }

}

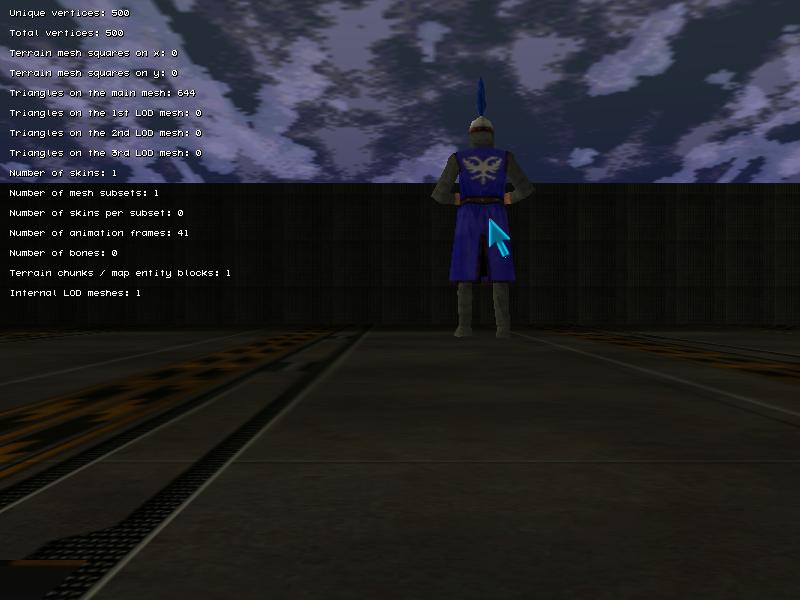

function entinfo_startup() // touch the entity with the mouse pointer to retrieve the info

{

       while (1)

       {

               vertices = ent_status(mouse_ent, 0);

               total_vertices = ent_status(mouse_ent, 1);

               squares_x = ent_status(mouse_ent, 2);

               squares_y = ent_status(mouse_ent, 3);

               triangles_main = ent_status(mouse_ent, 4);

               triangles_lod1 = ent_status(mouse_ent, 5);

               triangles_lod2 = ent_status(mouse_ent, 6);

               triangles_lod3 = ent_status(mouse_ent, 7);

               num_skins = ent_status(mouse_ent, 8);

               mesh_subsets = ent_status(mouse_ent, 9);

               skins_per_subset = ent_status(mouse_ent, 10);

               anim_frames = ent_status(mouse_ent, 12);

               num_bones = ent_status(mouse_ent, 14);

               tchunks_mblocks = ent_status(mouse_ent, 16);

               lod_meshes = ent_status(mouse_ent, 20);

               wait (1);

       }

}

PANEL* info_pan =

{

       layer = 15;

       digits(10, 10, "Unique vertices: %.f", *, 1, vertices);

       digits(10, 30, "Total vertices: %.f", *, 1, total_vertices);

       digits(10, 50, "Terrain mesh squares on x: %.f", *, 1, squares_x);

       digits(10, 70, "Terrain mesh squares on y: %.f", *, 1, squares_y);

       digits(10, 90, "Triangles on the main mesh: %.f", *, 1, triangles_main);

       digits(10, 110, "Triangles on the 1st LOD mesh: %.f", *, 1, triangles_lod1);

       digits(10, 130, "Triangles on the 2nd LOD mesh: %.f", *, 1, triangles_lod2);

       digits(10, 150, "Triangles on the 3rd LOD mesh: %.f", *, 1, triangles_lod3);

       digits(10, 170, "Number of skins: %.f", *, 1, num_skins);

       digits(10, 190, "Number of mesh subsets: %.f", *, 1, mesh_subsets);

       digits(10, 210, "Number of skins per subset: %.f", *, 1, skins_per_subset);

       digits(10, 230, "Number of animation frames: %.f", *, 1, anim_frames);

       digits(10, 250, "Number of bones: %.f", *, 1, num_bones);

       digits(10, 270, "Terrain chunks / map entity blocks: %.f", *, 1, tchunks_mblocks);

       digits(10, 290, "Internal LOD meshes: %.f", *, 1, lod_meshes);

       flags = visible;

}

New WED menus

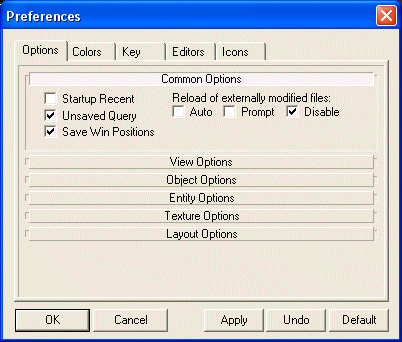

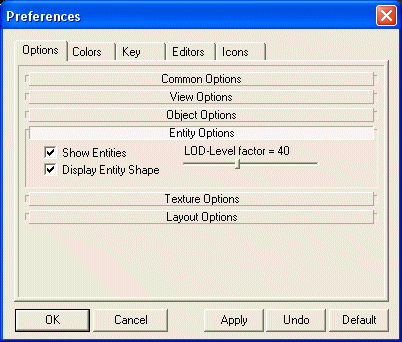

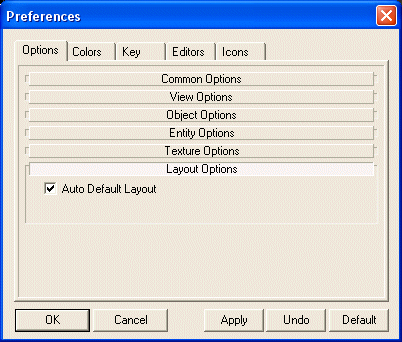

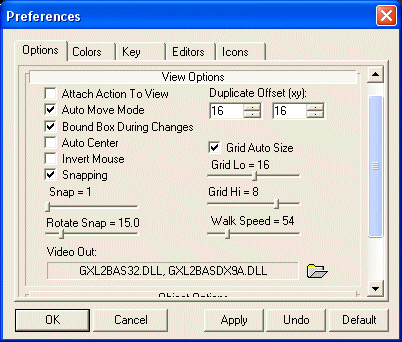

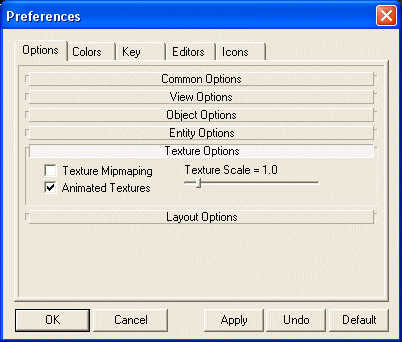

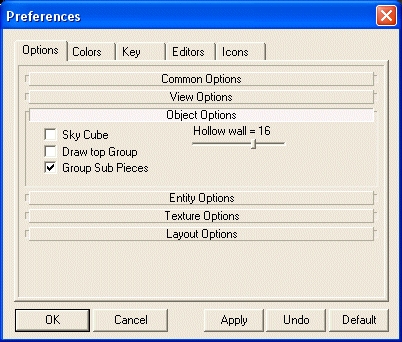

Wed's "Preferences" are structured in a more logical way now.
